How to Supplant a Fuel Pump

Dan Ferrell writes about practise-information technology-yourself car maintenance and repair. He has certifications in automation and control technology.

Replacing a fuel pump tin can easily price you a fortune in repairs; depending on your vehicle make and model, you can expect to pay a mechanic $400 or more. No wonder yous desire to exercise the job yourself! Or perhaps you just like doing repairs on your own car.

In fact, you lot may already have the tools you demand for the project, because, in virtually cases, y'all merely need some common tools. Except on a few vehicle models, which have components that block access to the fuel tank, the average motorcar possessor tin do this job at domicile.

Yet, in spite of all these points in your favor, it's not recommended that you work on the fuel organisation of your machine unless y'all accept the proper precautions (more than on this later on). Other than that, of course, you lot can do it.

Now, the level of difficulty will vary depending on your skills, experience, and the specific vehicle model you own. On some models, for example, replacing the fuel pump is a matter of removing a seat; in others, you demand to heighten the car and drop the fuel tank to access the module with the pump.

This guide is here to help you supervene upon the failed pump in your vehicle, whether you demand to drop the fuel tank or not. Although general in nature, for many automobile models this guide is all you'll need.

Here, you'll detect helpful pointers—and important safety advice—forth the way.

Let's become started.

Index

1. Ten Gilt Rules to Follow When Replacing a Fuel Pump

two. How to Relieve Fuel System Pressure

3. How to Remove the Fuel Pump

4. How to Install the Fuel Pump

five. How to Replace an Inline Fuel Pump

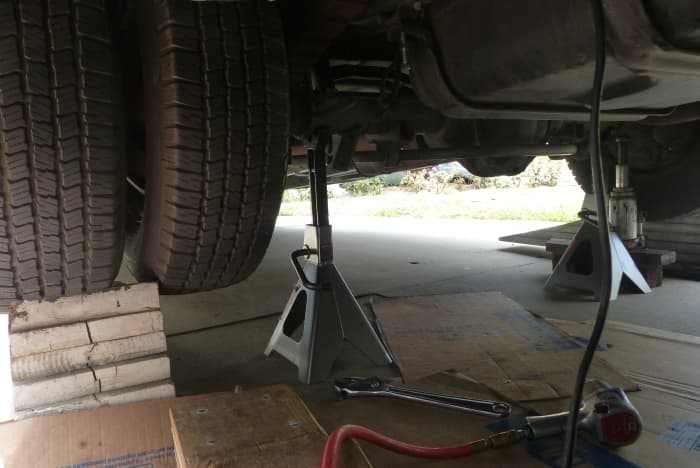

Always support the vehicle on jack stands when working underneath.

Photo courtesy of lw5315us on Flickr

1. X Aureate Rules to Follow When Replacing a Fuel Pump

Here are points you need to pay attention to earlier yous commencement working on your project. Your success may depend on it, then ignore information technology at your own risk.

ii. How to Salve Fuel Organisation Force per unit area

Before yous tin can beginning working on the fuel organization of your vehicle, you need to relieve the pressure in the fuel system. If y'all demand more than data virtually relieving fuel system force per unit area for your car, or If you have difficulty locating any of the parts or components described below, consult the auto owner's manual or vehicle repair transmission for your specific model.

Depending on your particular vehicle model, you can use ane of the methods described below:

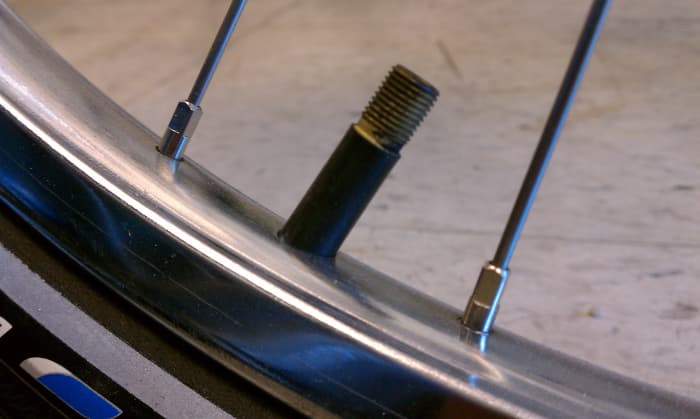

Most fuel injection fuel system models (most modern vehicles) apply a Schrader valve (similar to a tire'southward air valve). You can find the valve near the fuel rail, which holds the fuel injectors. Apply a shop rag to embrace the valve and a pocket-sized screwdriver to depress the valve. Catch the eject of fuel with the rag. Then disconnect the bombardment negative (black) cablevision.
Some other method is to remove the fuel pump fuse (in the fuse box) or the fuel pump relay (under the dashboard or under the hood), or unplug the ignition coil electrical connector. And so start the engine, and let it stall. Crank the engine for a few seconds, and so disconnect the battery.
Some vehicles (specifically Ford) have an inertia switch (check your auto possessor's manual or repair transmission). Y'all can unplug this switch, starting time the engine. Let it stall. So crank the engine for a few seconds, and disconnect the bombardment.
If you lot have a car with an admission door to the fuel pump nether the back seat or inside the trunk, kickoff the engine, and so unplug the electric connector. Let the engine stall, and disconnect the bombardment.

Afterwards properly relieving the fuel organization force per unit area, remove the fuel filler cervix cap to save pressure within the tank as well.

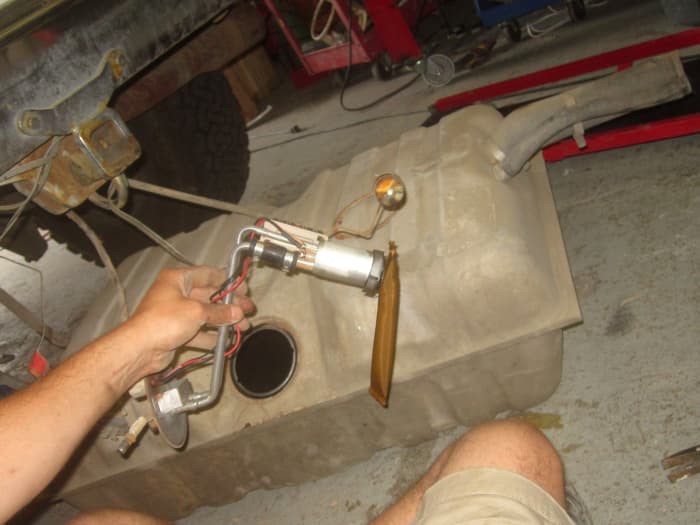

Removing the fuel pump assembly from the fuel tank.

Photo courtesy of Zadkoda on Flickr

iii. How to Remove the Fuel Pump

Now, yous are set to start working on your fuel pump. First, locate the fuel tank in your vehicle. You may notice the tank at the rear, under the vehicle, behind a trunk panel or nether the rear seat. Check your vehicle auto owner'due south manual or repair manual, if necessary.

Some vehicle models provide a fuel pump access door, to salvage yous from dropping the fuel tank to service the fuel pump. So check your auto owner'due south transmission or repair manual. Or check nether the dorsum seat or the torso of your car for a small, bolted door. You may come across an electric connector on it.
If you find the access door, unplug the electric connector and use a ratchet with an extension and a socket of the correct size to remove the bolts holding the door in place. Proceed the door bolts in a safe place, and then that you don't lose them, and remove the door and look underneath. You lot should see the elevation section of the fuel tank where the fuel lines connect to, along with an electrical connector as well.
If your vehicle doesn't have this access door, safely secure the machine on a couple of jack stands.
Block each front wheel with a wooden block to prevent the vehicle from rolling.
Earlier proceeding to work on the fuel tank, check that no parts or components will interfere when you are attempting to drop the tank. Otherwise, remove these components. Check your automobile repair transmission if necessary.
And then, place the floor jack under the fuel tank with a piece of forest between the jack saddle and the fuel tank to prevent dissentious the tank. Raise the jack just enough to rest the jack'south saddle against the fuel tank.
So, proceed to remove the bolts from the two fuel-tank holding straps (some tanks utilize mounting screws around the flange instead). You may need to apply a ratchet with a long extension to reach these bolts—and a hinge joint in some cases, to reach the bolts from an angle.
In one case you've removed the straps out of the manner, check to see if you can disconnect the fuel filling hose or fuel lines from the fuel tank at this point. Sometimes you demand to lower the fuel tank a few inches to proceeds access to these hoses. On some models, you'll need a fuel disconnect line tool to carve up the fuel hoses.
Before disconnecting any hoses or lines, you may want to tag them so that you lot take a proper reference when reconnecting everything once again. You can use masking tape for this.
Disconnect the electrical connector from the tank. This connector powers the fuel pump within the tank. Look out for those fragile locking tabs that agree the connector in identify.
After disconnecting the fuel lines and unplugging the electrical connector from the tank, drop the fuel tank. Encompass any hoses you disconnected with a slice of clean plastic and secure it with a safe band to preclude contamination. Depending on your detail model, you may non have to actually remove the tank out of the vehicle. Check to meet if yous can lower the tank but enough to remove the fuel pump or fuel sending unit assembly.
Thoroughly make clean the height of the fuel tank, especially the top bracket of the fuel pump assembly. This volition prevent contaminating the fuel tank with dirt and foreign matter after removing the module.
To remove the fuel sending unit of measurement assembly from the tank, unscrew the cam lock ring securing the assembly to the tank. Use a brass punch (or wooden dowel) to avoid sparks that may ignite fuel fumes. You lot tin can besides use a screwdriver for this, but place a shop rag between the screwdriver and the lock band tabs to foreclose sparks. Use the punch or screwdriver to rotate the lock ring counterclockwise to release it. NOTE: On some vehicles, screws hold the fuel pump module in place, so you'll demand to unscrew the bolts to remove the module.
After removing the cam lock ring, slowly lift the fuel pump sending unit associates. Underneath the sending unit mounting bracket, you'll see a seal—rubber ring—effectually the opening of the fuel tank. Brand sure to remove this band and use a new one.
Y'all'll need to lift the sending unit out of the tank at an angle, so the long wire arm property the fuel level float clears the opening without damaging the electrical mechanism connected to the arm.
The sending unit of measurement associates volition only fit in the tank in a unmarried position. Wait which direction the long arm points to; y'all will need to reinstall the associates with the long arm pointing in the same management.

4. How to Install the Fuel Pump

One time you have the fuel pump assembly out of the fuel tank, place information technology on a workbench or suitable working space so that y'all tin install the new pump in the assembly, unless y'all are replacing the whole unit of measurement.

Examine the electric wiring, hoses and overall condition of the associates. If necessary, replace the assembly; otherwise, it may affect the performance of your new pump and you'll need to redo the same job in the near future.
Detach the fuel pump by disconnecting the bottom bracket, fuel pump strainer, electric wires, and fuel outlet hose from the pump.
Install the new fuel pump in the assembly, and reconnect the wires, hoses, new pump strainer and bracket.
Clean the inside of the tank with pressurized water to remove dirt and allow it thoroughly dry before reinstalling the new fuel pump associates.
Clean the fuel tank opening with carburetor cleaner before positioning the O-band or rubber seal.
Install the associates with the new fuel pump in the tank along with a bracket-assembly seal gasket. You may want to apply a thin layer of petroleum jelly to the bottom of the rubber seal to concur information technology in identify as you lock the sending unit onto the tank.
With the pump module in place, lock the cam ring by rotating the ring clockwise using the brass chisel or screwdriver and hammer (or bolt the unit in place).
Then, use the floor jack to lift the fuel tank only enough to reconnect the fuel lines, pump sending unit of measurement electrical connector, and filler neck to the tank.
Carefully lift the fuel tank into position, making certain not to squeeze or damage the fuel lines and electrical connectors.
Secure the tank by attaching the tank straps or flange mounting bolts.
With the fuel tank in place and all hoses and electric connectors plugged in, lower the vehicle, if y'all had to raise it. Or reinstall the access door.
Connect the negative cable to the battery.
Start the vehicle and check for leaks.
If yous accept not changed the fuel filter in more than than a year, this is a good fourth dimension to install a new i. That manner your new pump will have a clear path to fuel the engine.
Refill the tank with enough gasoline to embrace the fuel pump—usually a quarter of a tank full.

The next video gives yous an idea of how to supplant a mechanical fuel pump.

five. How to Supervene upon an Inline Fuel Pump

Replacing an inline (external) fuel pump is much easier than installing an in-tank fuel pump because you don't accept to drop or gain access to the fuel tank.

In some vehicle models, you'll find the inline pump inside the engine compartment; in others near the fuel tank. In the latter example, you volition still take to raise the vehicle and safely support it on jack stands. If you don't know where to find the external pump in your vehicle, consult your car owner's manual or repair manual for your particular vehicle model.

Whichever model you lot have, the adjacent steps will assist y'all replace your fuel pump.

Place a container under the pump to catch the residual fuel in the lines.
Use a regular wrench to hold the fuel pump plumbing equipment while using a line wrench to disconnect the fuel line from the fuel pump. Make certain to utilize a line wrench (aka flare wrench); if y'all harm the line nut, you'll need to replace the whole line.
Disconnect the fuel line on the other side of the fuel pump.
Unscrew the commodities property the pump mounting bracket in place.
Remove the sometime fuel pump
Remove whatsoever gasket material from the pump mounting surface using a plastic scraper to prevent damaging the surface.
Apply a thin layer of gasket sealer to the new fuel pump gasket and place the new gasket in position.
Position the new fuel pump in place and secure information technology with the pump bracket.
Start connecting the two fuel lines to the pump by hand first.
Hold the pump fitting with a regular wrench, and tighten the line with the flare wrench.
Tighten the other fuel line.

Communication

To keep your new pump working at optimal conditions and extend its service life, always replace the fuel filter at your recommended manufacturer interval, or at to the lowest degree in one case a yr.
Never run your car with less than a quarter of a tankful of gas. Fuel helps to keep the fuel pump cool, and the college the fuel level in the tank, the lower the stress on the pump during operation.

This commodity is authentic and true to the all-time of the author's knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional person advice in business, fiscal, legal, or technical matters.

Questions & Answers

Question: I replaced the fuel pump but having trouble starting the car. What should I practise to troubleshoot my car now?

Answer: If it cranks but won't start, make sure you accept good fuel pressure and spark. If in that location'south no fuel or poor fuel delivery, it may be related to the pump installation or the fuel force per unit area regulator. You can try spraying a shot of starting fuel through the throttle valve. If it helps the engine catch for a couple of seconds, the problem is nearly probable in the fuel system. This other postal service may help:

https://axleaddict.com/auto-repair/How-to-Examination-a-F...

Question: If I'm doing my in-tank fuel pump (admission under seat), do I need to drain the fuel?

Reply: If yous take access to the pump from under the seat you don't need to drain the tank. Just pull the pump through the access door and replace it. You may want to utilize the vehicle repair transmission. If you don't have the manual, check the reference section of your local library.

Question: My fuel pump in my 95 Ford Ranger extended cab has two hoses running from it inside my gas tank not connected to annihilation. I need to know what to do with them when installing a new fuel pump. No one mentions these hoses in tutorials I have read in repair manuals and watched on Youtube. What do I exercise with these hoses?

Answer: Merely follow the instructions in your manual. Make sure you lot accept the one for your particular make and model.

Question: What tools are needed to replace a 2005 Honda Accord EX fuel pump?

Respond: Y'all'll need some common tools - screwdrivers, ratchet, extension, socket set up, pliers - and probably a lock ring removal tool for the pump. If y'all don't accept the repair manual with you, this video might exist of some help:
